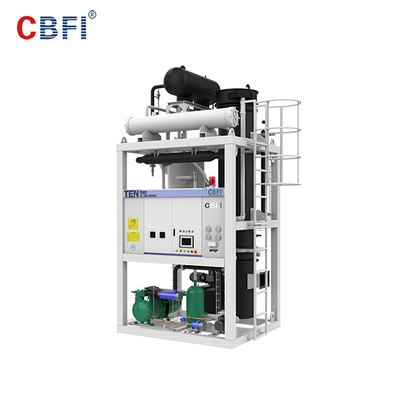

10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact

10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact
10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact
10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact 10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact 10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact

Büyük resim :  10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact

Ürün ayrıntıları:
Menşe yeri: China
Marka adı: CBFI
Sertifika: CE, ISO9001,ISO14001
Model numarası: TV100, TV200, TV300
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 set
Fiyat: USD 1~100000000
Ambalaj bilgileri: wooden case
Teslim süresi: 40 days after receiving the 30% deposit
Ödeme koşulları: T/T, L/C, Western Union, MoneyGram
Yetenek temini: 50 sets/month

10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact

Açıklama
Şart: Yeni Kompresör: Yarı hermetik Piston tipi
günlük çıktı: 1.000kg ~ 30.000kg Tüp buz Çapı: 22 mm, 28 mm, 35 mm
Kontrol: Almanya Siemens Elektrikli aksesuarlar: Güney Kore LG
Genleşme valfleri: Danimarka Danfoss SOLENOİD VANALAR: İtalya Kastalı
Operasyon: Dokunmatik ekran
Vurgulamak:

Tube Ice Machine

,

Ice Tube Maker


CBFI Most Popular 10 ton, 20 ton, 30 ton Tube Ice Machine for Large Ice Plant for Philippines

Model Ice Making Capacity Rated Power Circulationg Water Pump Power Cooling Water Pump Capacity Cooling Fan Capacity Ice Cutter Motor Machine Dimension Weight of Machine
No. Ton/24h Kw Kw Kw Kw Kw WxHxL(mm) KG
TV10 1.0 4.28 0.55 1.1 0.18 0.75 1100x900x1760 900
TV20 2.0 7.77 0.55 1.5 0.37 0.75 1250x1000x1950 1200
TV30 3.0 12.33 1.1 1.5 0.56 0.75 1400x1100x2200 1500
TV50 5.0 21 1.5 2.2 0.75 1.5 1600x1400x2250 1800
TV100 10.0 29.2 1.5 4 1.5 1.5

1200x1200x3100

2300x1550x1800

3500
TV150 15.0 49 2.2 5.5 1.5 1.5

1500x1200x4500

2700x1950x2250

4250
TV200 20.0 58.5 2.2 5.5 2.2 2.2

1600x1300x4700

3100x2200x2250

6500
TV300 30.0 87.6 2.2 15 2.2 2.2

3000x2200x2500

2200x1900x6200

7200





CBFI tube ice machine aplication



10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact 0



10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact 1

Machine details:



1.Standard wooden case.
2.Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water
fittings.
3.Machine come into use, customer only need prepare power for the machine.
4.All required components for installing the machine will be provided.

10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact 210 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact 3



CBFI Tube Ice Machine in client's ice plant



10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact 4



10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact 5



10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact 6



10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact 7



10 ton , 20 ton , 30 ton Tube Ice Machine for Large Ice Plant Compact 8
