Ürün ayrıntıları:
|
| Durum: | Yepyeni. | Çıkış: | 1 tondan 30 tona |
|---|---|---|---|
| Tüp buz Çapı: | 22 mm, 28 m, 35 mm | makine nakliyesi: | bir adet 20 feet konteyner veya bir adet 40 feet konteyner |
| Kompresör: | Yarı hermetik tip veya vidalı tip | Kontrol: | Almanya Siemens |
| Elektrikli aksesuar markası: | LG ve Schneider | genleşme valfleri: | Danimarka Danfoss |
| Solenoid Valfler: | İtalya Castal | ||
| Vurgulamak: | Tube Ice Machine,Ice Tube Maker |
||

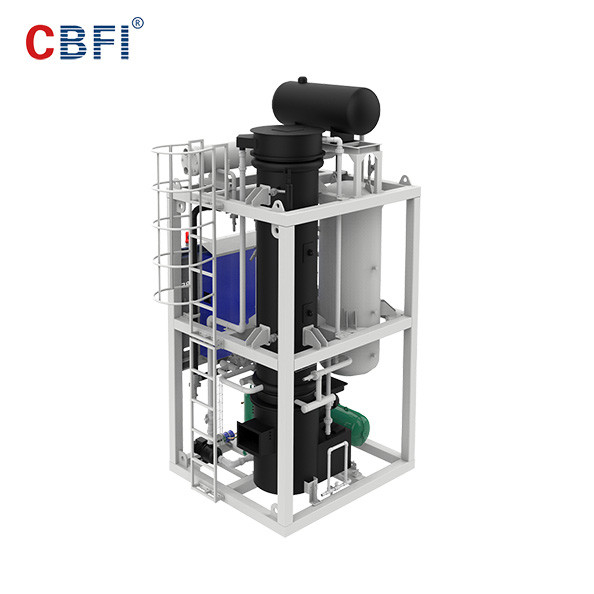

CBFI Stainless steel evaporator, Large refrigerant tank, Denmark Danfoss expansion valves Tube Ice Machine
| Model | Ice Making Capacity | Rated Power | Circulationg Water Pump Power | Cooling Water Pump Capacity | Cooling Fan Capacity | Ice Cutter Motor | Machine Dimension | Weight of Machine |
|---|---|---|---|---|---|---|---|---|
| No. | Ton/24h | Kw | Kw | Kw | Kw | Kw | WxHxL(mm) | KG |
| TV10 | 1.0 | 4.28 | 0.55 | 1.1 | 0.18 | 0.75 | 1100x900x1760 | 900 |
| TV20 | 2.0 | 7.77 | 0.55 | 1.5 | 0.37 | 0.75 | 1250x1000x1950 | 1200 |
| TV30 | 3.0 | 12.33 | 1.1 | 1.5 | 0.56 | 0.75 | 1400x1100x2200 | 1500 |
| TV50 | 5.0 | 21 | 1.5 | 2.2 | 0.75 | 1.5 | 1600x1400x2250 | 1800 |
| TV100 | 10.0 | 29.2 | 1.5 | 4 | 1.5 | 1.5 |
1200x1200x3100 2300x1550x1800 |
3500 |
| TV150 | 15.0 | 49 | 2.2 | 5.5 | 1.5 | 1.5 |
1500x1200x4500 2700x1950x2250 |
4250 |
| TV200 | 20.0 | 58.5 | 2.2 | 5.5 | 2.2 | 2.2 |
1600x1300x4700 3100x2200x2250 |
6500 |
| TV300 | 30.0 | 87.6 | 2.2 | 15 | 2.2 | 2.2 |
3000x2200x2500 2200x1900x6200 |
7200 |
Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
